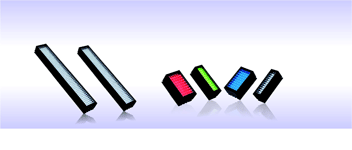

KMN-2BR

The shell is designed by aluminum alloy integrated molding; special heat transferring design; multi-option illumination angles and installation way; High-density LED arrays; can be used for a wide range of applications.

Features:

*High-density lamp LEDs mounted on a PCB

*Special heat transferring design

*Small differences among different batches

*Easy to be customized in color and size

*High flexibility in installation is also provided

*Various diffusers are available

Applications:

1.LCD panel inspection

2.Metal surface defect inspection

3.Printed characters inspection

4.Connector pins inspection

5.Surface crack detection

6.Edge defect inspectio

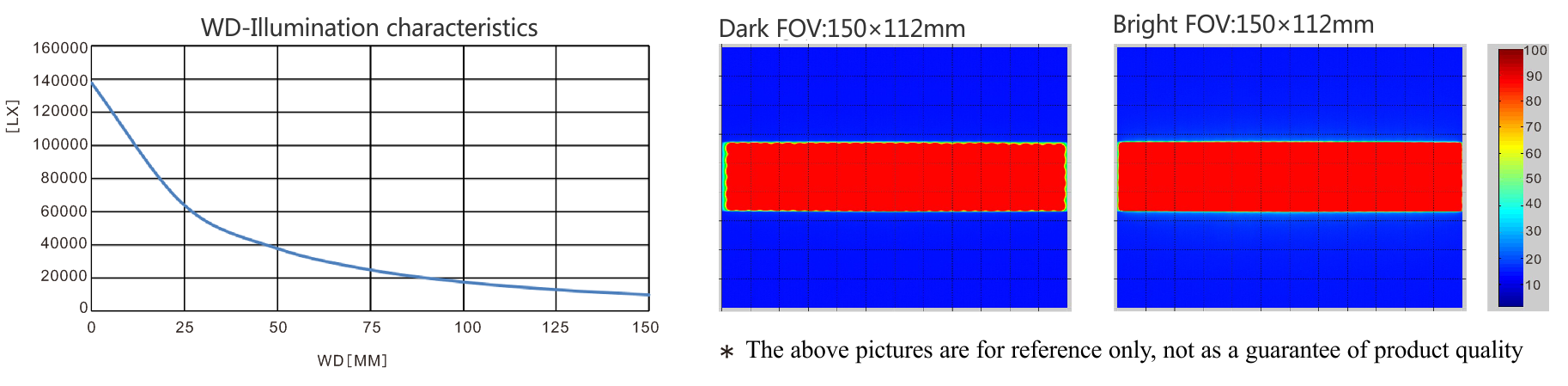

Uniformity Legend Uniform Distribution

Model：KMN-2BR15030-W

·KMN-2BR16

KMN - 2BR ## ##- C
company's name - type - diameter - angle - color

·KMN-2BR30

KMN - 2BR ## ##- C
company's name - type - diameter - angle - color

Model No	Color	Size	Voltage/Power	Optional
KMN-2BR3016-R		Size:422226mm	24V/0.5W	Yes
KMN-2BR3016-B/G/W		Size:422226mm	24V/0.7W	Yes
KMN-2BR6016-R		Size:722226mm	24V/1.0W	Yes
KMN-2BR6016-B/G/W		Size:722226mm	24V/1.4W	Yes
KMN-2BR9016-R		Size:1022226mm	24V/1.4W	Yes
KMN-2BR9016-B/G/W		Size:1022226mm	24V/2.2W	Yes
KMN-2BR12016-R		Size:1322226mm	24V/1.9W	Yes
KMN-2BR12016-B/G/W		Size:1322226mm	24V/2.9W	Yes
KMN-2BR15016-R		Size:1622226mm	24V/2.4W	Yes
KMN-2BR15016-B/G/W		Size:1622226mm	24V/3.6W	Yes
KMN-2BR18016-R		Size:1922226mm	24V/2.9W	Yes
KMN-2BR18016-B/G/W		Size:1922226mm	24V/4.3W	Yes
KMN-2BR21016-R		Size：2222226mm	24V/3.4W	Yes
KMN-2BR21016-B/G/W		Size：2222226mm	24V/5.0W	Yes
KMN-2BR24016-R		Size：2522226mm	24V/3.8W	Yes
KMN-2BR24016-B/G/W		Size：2522226mm	24V/5.8W	Yes
KMN-2BR27016-R		Size：2922226mm	24V/4.3W	Yes
KMN-2BR27016-B/G/W		Size：2922226mm	24V/6.5W	Yes
KMN-2BR30016-R		Size：3122226mm	24V/4.8W	Yes
KMN-2BR30016-B/G/W		Size：3122226mm	24V/7.2W	Yes
KMN-2BR33016-R		Size：3422226mm	24V/5.3W	Yes
KMN-2BR33016-B/G/W		Size：3422226mm	24V/7.9W	Yes
KMN-2BR36016-R		Size：3722226mm	24V/5.8W	Yes
KMN-2BR36016-B/G/W		Size：3722226mm	24V/8.6W	Yes
KMN-2BR39016-R		Size：4022226mm	24V/6.2W	Yes
KMN-2BR39016-B/G/W		Size：4022226mm	24V/9.4W	Yes
KMN-2BR42016-R		Size：4322226mm	24V/6.7W	Yes
KMN-2BR42016-B/G/W		Size：4322226mm	24V/10.1W	Yes
KMN-2BR45016-R		Size：4622226mm	24V/7.2W	Yes
KMN-2BR45016-B/G/W		Size：4622226mm	24V/10.8W	Yes
KMN-2BR48016-R		Size：4922226mm	24V/7.7W	Yes
KMN-2BR48016-B/G/W		Size：4922226mm	24V/11.5W	Yes
KMN-2BR51016-R		Size：5222226mm	24V/8.2W	Yes
KMN-2BR51016-B/G/W		Size：5222226mm	24V/12.2W	Yes

Model No	Color	Size	Voltage/Power	Optional
KMN-2BR2530-R		Size:373626mm	24V/0.7W	Yes
KMN-2BR2530-B/G/W		Size:373626mm	24V/1.2W	Yes
KMN-2BR3830-R		Size:503626mm	24V/1.1W	Yes
KMN-2BR3830-B/G/W		Size:503626mm	24V/1.8W	Yes
KMN-2BR5030-R		Size:623626mm	24V/1.4W	Yes
KMN-2BR5030-B/G/W		Size:623626mm	24V/2.4W	Yes
KMN-2BR7530-R		Size:873626mm	24V/2.2W	Yes
KMN-2BR7530-B/G/W		Size:873626mm	24V/3.6W	Yes
KMN-2BR10030-R		Size:1123626mm	24V/2.9W	Yes
KMN-2BR10030-B/G/W		Size:1123626mm	24V/4.8W	Yes
KMN-2BR12530-R		Size:1373626mm	24V/3.6W	Yes
KMN-2BR12530-B/G/W		Size:1373626mm	24V/6.0W	Yes
KMN-2BR15030-R		Size:1623626mm	24V/4.3W	Yes
KMN-2BR15030-B/G/W		Size:1623626mm	24V/7.2W	Yes
KMN-2BR17530-R		Size:1873626mm	24V/5.0W	Yes
KMN-2BR17530-B/G/W		Size:1873626mm	24V/8.4W	Yes
KMN-2BR20030-R		Size:2123626mm	24V/5.8W	Yes
KMN-2BR20030-B/G/W		Size:2123626mm	24V/9.6W	Yes
KMN-2BR22530-R		Size:2373626mm	24V/6.5W	Yes
KMN-2BR22530-B/G/W		Size:2373626mm	24V/10.8W	Yes
KMN-2BR25030-R		Size:2623626mm	24V/7.2W	Yes
KMN-2BR25030-B/G/W		Size:2623626mm	24V/12.0W	Yes
KMN-2BR27530-R		Size:2873626mm	24V/7.9W	Yes
KMN-2BR27530-B/G/W		Size:2873626mm	24V/13.2W	Yes
KMN-2BR30030-R		Size:3123626mm	24V/8.6W	Yes
KMN-2BR30030-B/G/W		Size:3123626mm	24V/14.4W	Yes
KMN-2BR32530-R		Size:3373626mm	24V/9.3W	Yes
KMN-2BR32530-B/G/W		Size:3373626mm	24V/15.6W	Yes
KMN-2BR35030-R		Size:3623626mm	24V/10.1W	Yes
KMN-2BR35030-B/G/W		Size:3623626mm	24V/16.8W	Yes
KMN-2BR37530-R		Size:3873626mm	24V/10.8W	Yes
KMN-2BR37530-B/G/W		Size:3873626mm	24V/18.0W	Yes
KMN-2BR40030-R		Size:4123626mm	24V/11.5W	Yes
KMN-2BR40030-B/G/W		Size:4123626mm	24V/19.2W	Yes
KMN-2BR42530-R		Size:4373626mm	24V/12.2W	Yes
KMN-2BR42530-B/G/W		Size:4373626mm	24V/20.4W	Yes
KMN-2BR45030-R		Size:4623626mm	24V/13.0W	Yes
KMN-2BR45030-B/G/W		Size:4623626mm	24V/21.6W	Yes
KMN-2BR47530-R		Size:4873626mm	24V/13.7W	Yes
KMN-2BR47530-B/G/W		Size:4873626mm	24V/22.8W	Yes
KMN-2BR50030-R		Size:5123626mm	24V/14.4W	Yes
KMN-2BR50030-B/G/W		Size:5123626mm	24V/24.0W	Yes
KMN-2BR60030-R		Size:6123626mm	24V/17.3W	Yes
KMN-2BR60030-B/G/W		Size:6123626mm	24V/28.8W	Yes
KMN-2BR97030-R		Size:9823626mm	24V/27.9W	Yes
KMN-2BR97030-B/G/W		Size:9823626mm	24V/28.8W	Yes
KMN-2BR100030-R		Size:10123626mm	24V/28.8W	Yes
KMN-2BR100030-B/G/W		Size:10123626mm	24V/48.0W	Yes
KMN-2BR180030-R		Size:18123626mm	24V/51.9W	Yes
KMN-2BR180030-B/G/W		Size:18123626mm	24V/86.4W	Yes
