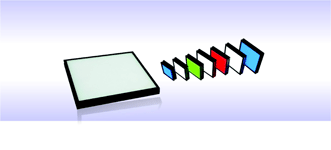

KMN-2PFT
By retaining the advantages of 2FT series, the Parallel Back Light 2PFT series is specially designed by increasing a parallel film. It emits a highly precious parallel light. It is suitable for high-accuracy components size measurement.
Features:* Outputting an highly precious parallel light *Designed by compact structure *High-power and high-uniform Chip LEDs *Small differences among different batches *Size and color can be customized easily *Various installation ways are available | Application Fields:1.Cylinder contour measurement 2.Glass bottle diameter measurement 3.High-accuracy components size measurement 4.Electronic component outline inspection |

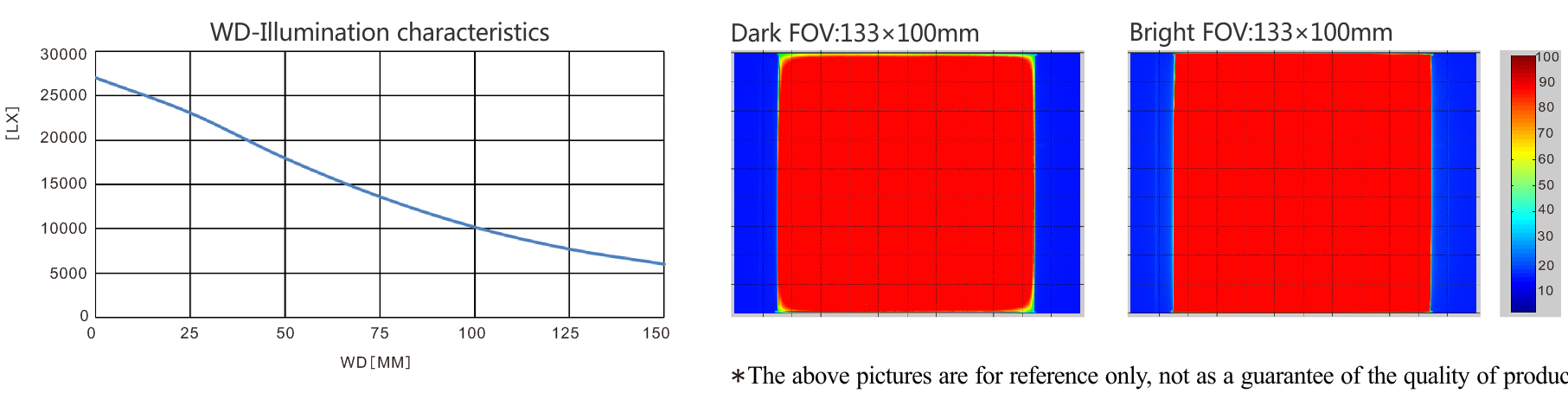

Uniformity Legend Uniform Distribution
Model：KMN-2PFT100100-W
Comparison Diagram

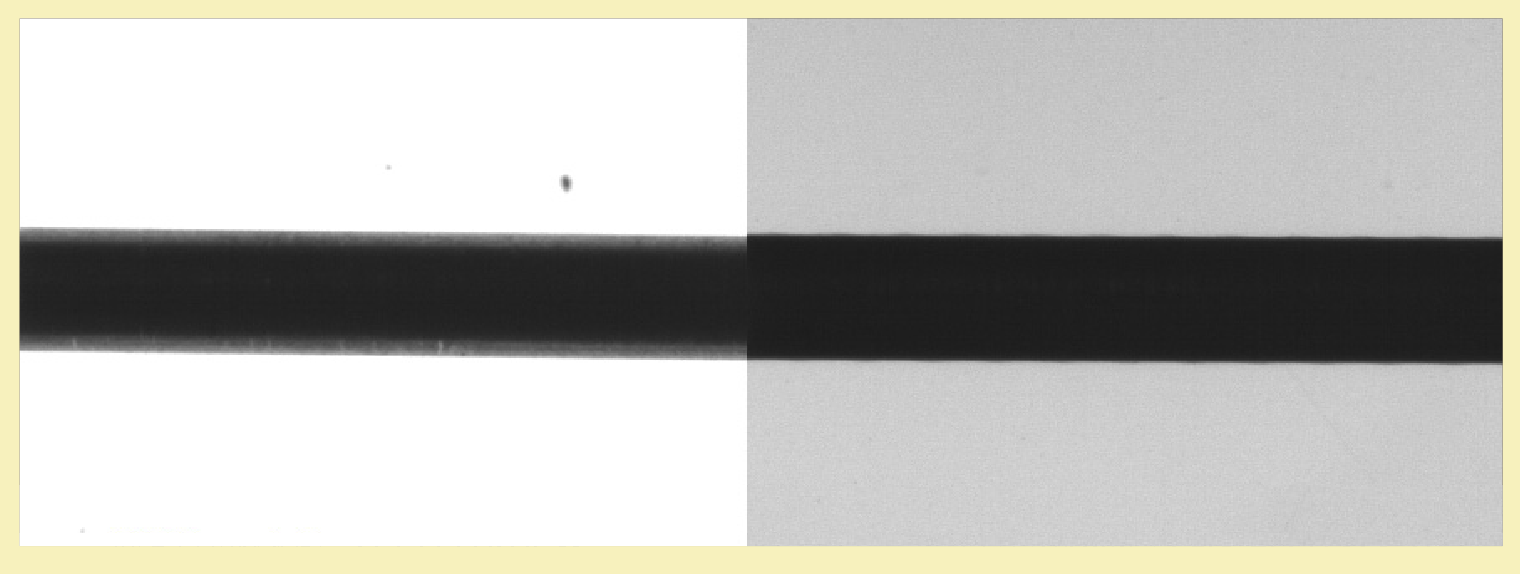

Diameter Measurement of Metal Cylinder
The light used: KMN-2FT7070-W KMN-2PFT7070-W
The above are the effect charts of the back light and parallel back light. From the effect charts, you can see the brightness of the parallel back light is decreased. However, relative to outline, the parallel back light can weak the dashed border phenomenon and increase the accuracy of measurement.
