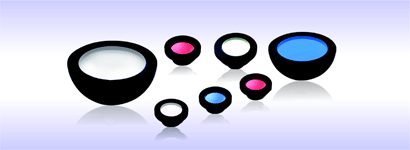

KMN-DM

High-uniform and high-density chip LEDS; evenly illuminates object from 360° by reflective lighting inside dome light; suitable to inspect reflective and uneven objects.

Features:

1.Significantly solve reflection or shadow problem

2.Large area illumination

3.High uniformity

Applications:

1.Shining, highly reflective or specular objects inspection

2.Rough surface inspection

3.IC pins inspection

4.Printed characters inspection

5.Mobile keyboard characters inspection

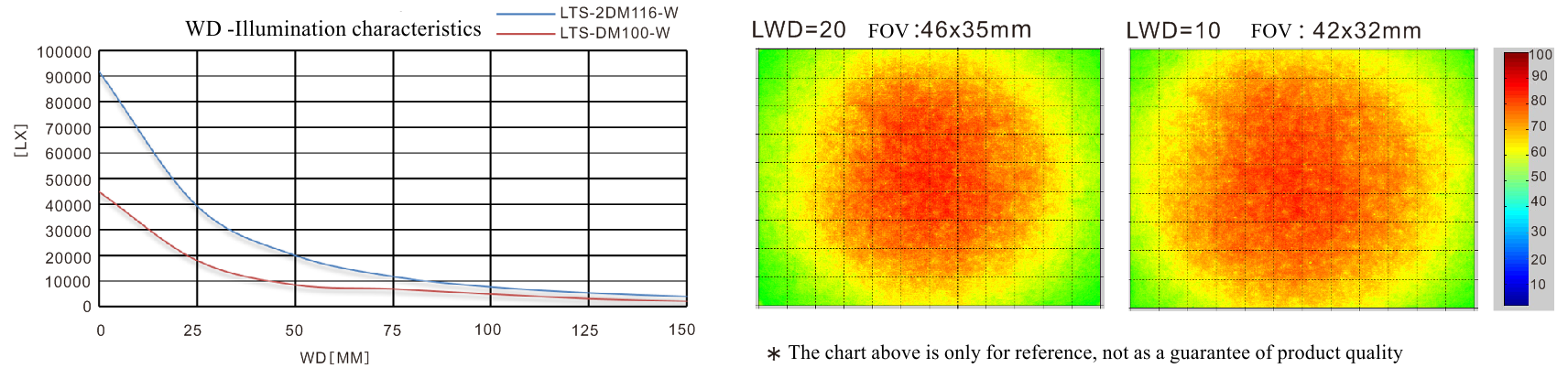

Uniformity Legend Uniform Distribution

Model：KMN-DM120-W

·KMN-DM

KMN - DM ## ##- R/G/B/W/IR/UV
company's name - type - diameter - angle - color

Model No	Color	Size	Voltage/Power	Optional
KMN-DM70-R		Dia : 70mm	24V/0.7W
KMN-DM70-B/G/W		Dia : 70mm	24V/1.2W
KMN-DM100-R		Dia : 100mm	24V/2.2W
KMN-DM100-B/G/W		Dia : 100mm	24V/3.1W
KMN-DM115-R		Dia : 115mm	24V/3.4W
KMN-DM115-B/G/W		Dia : 115mm	24V/5.0W
KMN-DM120-R		Dia : 120mm	24V/4.3W
KMN-DM120-B/G/W		Dia : 120mm	24V/6.5W
KMN-DM154-R		Dia : 154mm	24V/4.8W
KMN-DM154-B/G/W		Dia : 154mm	24V/7.7W
KMN-DM180-R		Dia : 180mm	24V/7.2W
KMN-DM180-B/G/W		Dia : 180mm	24V/12.0W
KMN-DM190-R		Dia : 190mm	24V/6.7W
KMN-DM190-B/G/W		Dia : 190mm	24V/10.1W
KMN-DM200-R		Dia : 200mm	24V/5.8W
KMN-DM200-B/G/W		Dia : 200mm	24V/10.6W
KMN-DM230-R		Dia : 230mm	24V/13.0W
KMN-DM230-B/G/W		Dia : 230mm	24V/21.6W
KMN-DM260-R		Dia : 260mm	24V/4.8W
KMN-DM260-B/G/W		Dia : 260mm	24V/8.2W
