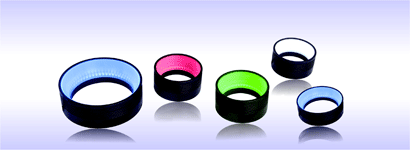

KMN-FPR

Ring shape and diffused, soft illumination; even illumination in the large square, without the shadow; ideal for flew or edge detection on reflective surfaces.

Features:

1. Illuminate surface evenly without shadow

2. Using high brightness LEDs to enhanced light intensity

3. Increasing defect contrast

4. Significantly solve reflection and flare

Application Fields:

1.BGA、QFP positioning inspection

2.IC material belts inspection

3.Connecter pins distance and deviation inspection

4.Cap crack inspection

Uniformity Legend Uniform Distribution

Model：KMN-FPR80-W

·KMN-FPR

KMN - FPR ## ##- R/G/B/W/IR/UV
company's name - type - diameter - angle - color

Model No	Color	Size	Voltage/Power	Optional
KMN-FPR80-R		Out dia.:φ80,Inner Dia.:φ64mm	24V/1.2W
KMN-FPR80-B/G/W		Out dia.:φ80,Inner Dia.:φ64mm	24V/1.9W
KMN-FPR94-R		Out dia.:φ94,Inner Dia.:φ16mm	24V/5.8W
KMN-FPR94-B/G/W		Out dia.:φ94,Inner Dia.:φ16mm	24V/8.6W
KMN-FPR120-R		Out dia.:φ120,Inner Dia.:φ94mm	24V/3.4W
KMN-FPR120-B/G/W		Out dia.:φ120,Inner Dia.:φ94mm	24V/5.0W
KMN-FPR150-R		Out dia.:φ150,Inner Dia.:φ80mm	24V/11.5W
KMN-FPR150-B/G/W		Out dia.:φ150,Inner Dia.:φ80mm	24V/19.2W
KMN-FPR160-R		Out dia.:φ160,Inner Dia.:φ133mm	24V/4.1W
KMN-FPR160-B/G/W		Out dia.:φ160,Inner Dia.:φ133mm	24V/6.7W
