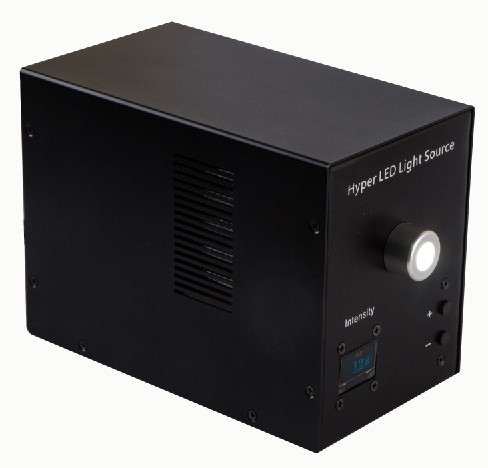

KMN-LSP
The industrial cold light is the newest product developed by KONMANN itself which could be the replacement of halogen lights. German-original high power LED chips and high efficiency optical system are adopted to increase more than 30% intensity. It has long life (up to 60 thousand hours), high brightness (can reach 0.3 million lux through the endoscope) and good uniformity (no halo, bright spots and dark area). It can fully replace cold lights like high power halogen lights and xenon lights etc. because it makes up their disadvantages such as short life and poor uniformity etc.
Features: 1.Adopting high power LEDs and unique optical lens to achieve more than 150W output of halogen lights 2.Fiber diameter is 12mm 3.Digital showing screen to adjust intensity 4.Life can reach 60 thousand hours (avoid changing bulbs to save cost) |
Application Fields: 1. Applied with the electron microscope 2.Applied with the auto endoscope 3.Applied with the industrial endoscope 4. Applied with optical fibers |
Parameter Description
Type | Model | KMN-LSP1360 | KMN-LSP1312 | Remark |
Industrial Cold Light | ||||
Intensity | 900000LUX | 200000LUX | ||
Power | 60W | 12W | ||
Drive current of single channel |
The max 15A,luminous
flux is | Max 3.5A | ||
Illumination value(Through the optical fiber) | Above 69 thousandlux | Above 15.5 thousandlux | ||
Input voltage | 220VAC | |||
Heat transfer material | Thermal resistance of junction heat sink is only 0.9 ºC/W | |||
Heat transfer way | Heat tube + heat sink+ fan | |||
Intensity adjust ways | Through Intensity adjust key (100 level) | |||
Working life time | 60 thousand hours | |||
Environmental protection | Meet RoHS standards | |||
Parameter Description
Type | Model | Current | Power | Color | Remark |
Industrial Cold Light | KMN-LSP1360 | 13.5A | 60W | W | LED power |
*Please contact KONMANN for more models. UV and IR Lights can be customized. | |||||
