Features ---------------------------------------------------------------------------------------- LS16B series is designed for 16k5u large-area scan camera. The lens can reach 82mm image size and the actual resolution can reach 160 lp/mm. Support 16k5u cameras which image size is 82mm. Resolution can reach 160lp/mm which provide higher contrast for the cameras. Minimum TV distortion less than 0.001% which equals to 1 piexl. FNO 3.8. |
|
| Specifications
| Model No | LS1626A | LS1603A | LS1642A | LS1605A | LS1662A | LS1667A | LS1607A |
| Focal length | 114 | 116 | 116 | 116 | 116 | 116 | 116 |
| Standard Magnification | 0.26x | 0.33x | 0.42x | 0.5x | 0.625x | 0.67x | 0.7X |
| Image Size ( Dia. ) | φ66 | φ66 | φ66 | φ66 | φ82 | φ66 | φ66 |
| F/# | 4.2 | 4.2 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 |
| Working Distance | 497.85 | 412 | 339.7 | 296.9 | 245.8 | 237.49 | 229.4 |
| Flange Distance | 128 | 137 | 144.5 | 153.3 | 163.6 | 170.2 | 174.4 |
| Conjuguate Distance | 672.16 | 595 | 530.1 | 496 | 455.3 | 453.5 | 447.2 |
| Mechanical Mount | V-Mount | V-Mount | V-Mount | V-Mount | V-Mount | V-Mount | V-Mount |
| Resolution | 16K | 16K | 16K | 16K | 16K | 16K | 16K |
| Model No | LS1675A | LS1610A | LS1613A | LS1615A | LS1617A |
| Focal length | 100 | 116 | 116 | 116 | 116 |
| Standard Magnification | 0.75x | 1.0x | 1.33x | 1.5x | 1.7X |
| Image Size ( Dia. ) | φ66 | φ66 | φ84 | φ84 | φ84 |
| F/# | 3.8 | 3.5 | 3.8 | 3.8 | 3.8 |
| Working Distance | 220.8 | 184.16 | 156.36 | 143.9 | 137.84 |
| Flange Distance | 180.6 | 209.47 | 243.6 | 263.8 | 286.1 |
| Conjuguate Distance | 444.8 | 439.45 | 444.5 | 453.7 | 470 |
| Mechanical Mount | V-Mount | V-Mount | V-Mount | V-Mount | V-Mount |
| Resolution | 16K | 16K | 16K | 16K | 16K |

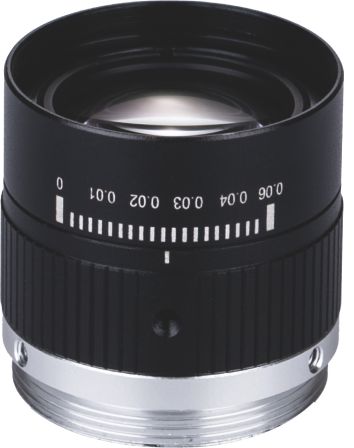

| External View
