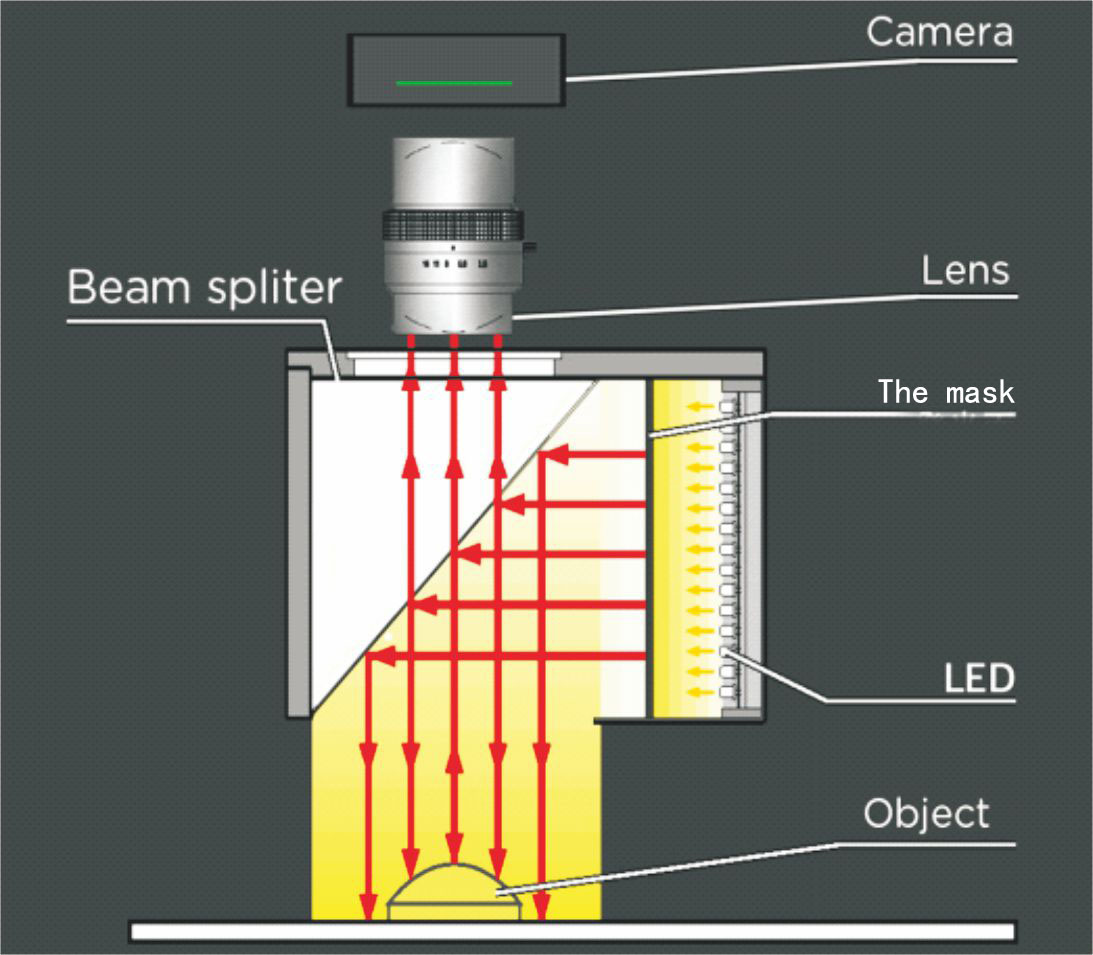

Features ---------------------------------------------------------------------------- L series is designed for coaxial illumination light source system which eliminates the declined resolution caused by the use of beam-splitting prism and get the requirements of high resolution and high contrast test. Compatible to 16k5u,16k3.5u and 12k5u cameras. Attached with 30 x80mm beam-splitting prism. Minimum TV distortion less than 0.001% which equals to 1 piexl. FNO 3.8. |
|
| Specifications
| Specs/Model | LS1610L(-P01) | LS1613L(-P01) | LS1615L(-P01) | LS1617L(-P01) | LS1620L(-P01) | LS1630L(-P01) |
| Focal length | 116 | 120 | 120 | 120 | 120 | 120 |
| Standard Magnification | 1.0x | 1.33x | 1.5x | 1.7X | 2X | 3X |
| Image Size ( Dia. ) | φ82 | φ82 | φ82 | φ82 | φ82 | φ82 |
| F/# | 3.8 | 4 | 4 | 4 | 4.0-16 | 4.0-16 |
| Optical Distortion | <0.0005% | <0.0003% | <0.08% | <0.05% | <0.0005% | <0.005% |
| Relative illumination | 90% | 90% | 90% | 90% | 90% | 90% |
| Working Distance | 157.39 | 156.36 | 143.9 | 137.84 | 135.95 | 112.6 |
| Flange Distance | 212.09 | 444.5 | 453.7 | 470 | 424.66 | 565.5 |
| Conjuguate Distance | 449.53 | 245 | 265 | 283 | 641.94 | 759.5 |
| Mechanical Mount | V-Mount | V-Mount | V-Mount | V-Mount | V-Mount | V-Mount |
| Resolution | 16K | 16K | 16K | 16K | 16K | 16K |

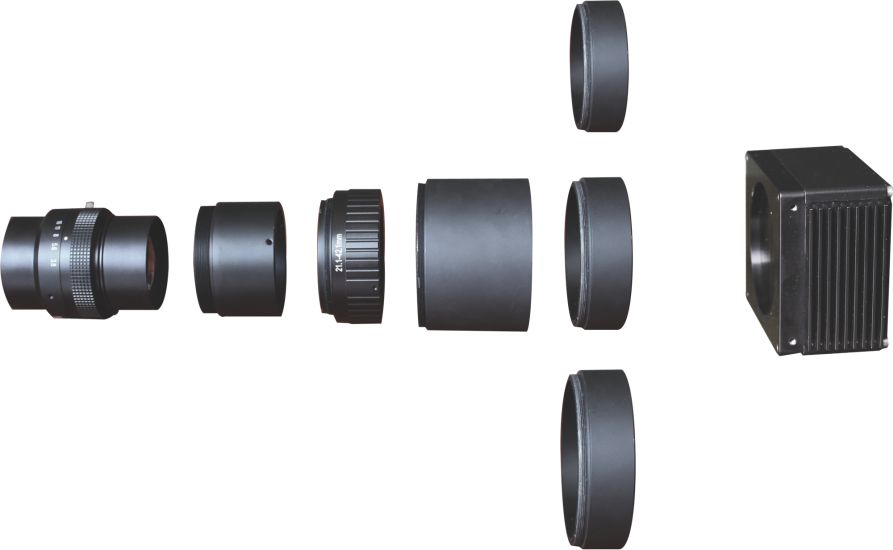

| Number | Mechanical Mount | Length | |
| Lens Holder | LH5420 | Vmount to M54 | 20 |
| Focusing Ring | MT03 | M54 to M58 | 42.3～67.3 |
| MT07 | M54 to M72 | 42.3～67.3 | |
| Extension Tube | EX7210 | M72 to M72 | 10 |
| EX7220 | M72 to M72 | 20 | |
| EX7250 | M72 to M72 | 50 | |
| AD5810 | M58 to M58 | 10 | |
| AD5825 | M58 to M58 | 25 | |
| AD5850 | M58 to M58 | 50 | |
| Adapter ring | AT9550 | M72 to M95 | 50 |
| External View
