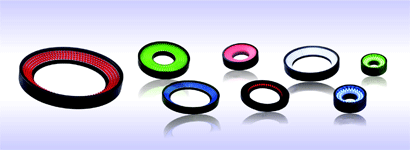

KMN-RN30

High brightness LEDs are evenly arranged to bring maximum brightness; 30 degrees; used to inspect edge skew.

Features:

*Diverse and customized angle

*Simple installation and compact design

*High brightness LEDs to bring maximum brightness

*Optional diffusers to meet the different needs

Application:

》Inspection of PCB substrate

》Inspection of characters of IC chip appearance

》Inspection of crew threads

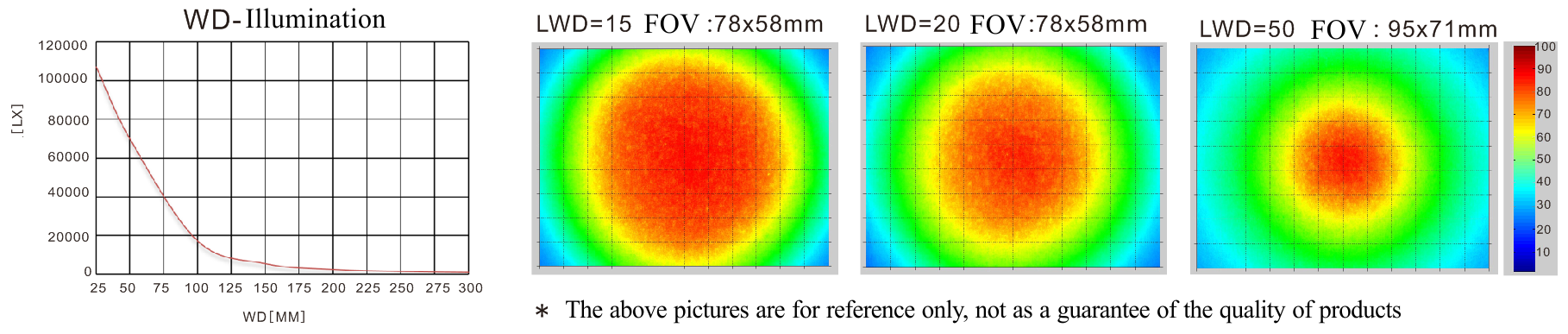

Uniformity Legend Uniform Distribution

Model：KMN-RN12030-W

·KMN-RN30

KMN - RN ## ##- R/G/B/W/IR/UV
company's name - type - diameter - angle - color

Model No	Color	Size	Voltage/Power	Optional
KMN-RN5030-R		Out dia.:φ50,Inner Dia.:φ25	24V/1.9W	Yes
KMN-RN5030-B/G/W		Out dia.:φ50,Inner Dia.:φ25	24V/2.9W	Yes
KMN-RN6030-R		Out dia.:φ60,Inner Dia.:φ35	24V/2.2W	Yes
KMN-RN6030-B/G/W		Out dia.:φ60,Inner Dia.:φ35	24V/3.4W	Yes
KMN-RN7030-R		Out dia.:φ70,Inner Dia.:φ33	24V/2.4W	Yes
KMN-RN7030-B/G/W		Out dia.:φ70,Inner Dia.:φ33	24V/3.8W	Yes
KMN-RN7430-R		Out dia.:φ74,Inner Dia.:φ40	24V/1.9W	Yes
KMN-RN7430-B/G/W		Out dia.:φ74,Inner Dia.:φ40	24V/2.9W	Yes
KMN-RN7630-R		Out dia.:φ76,Inner Dia.:φ40	24V/1.9W	Yes
KMN-RN7630-B/G/W		Out dia.:φ76,Inner Dia.:φ40	24V/2.9W	Yes
KMN-RN9030-R		Out dia.:φ90,Inner Dia.:φ51	24V/3.8W	Yes
KMN-RN9030-B/G/W		Out dia.:φ90,Inner Dia.:φ51	24V/5.8W	Yes
KMN-RN10030-R		Out dia.:φ100,Inner Dia.:φ66	24V/4.3W	Yes
KMN-RN10030-B/G/W		Out dia.:φ100,Inner Dia.:φ66	24V/7.2W	Yes
KMN-RN12030-R		Out dia.:φ120,Inner Dia.:φ80	24V/4.3W	Yes
KMN-RN12030-B/G/W		Out dia.:φ120,Inner Dia.:φ80	24V/7.2W	Yes
KMN-RN15030-R		Out dia.:φ150,Inner Dia.:φ112	24V/10.1W	Yes
KMN-RN15030-B/G/W		Out dia.:φ150,Inner Dia.:φ112	24V/15.1W	Yes
KMN-RN18030-R		Out dia.:φ180,Inner Dia.:φ132	24V/9.1W	Yes
KMN-RN18030-B/G/W		Out dia.:φ180,Inner Dia.:φ132	24V/14.9W	Yes
KMN-RN20030-R		Out dia.:φ200,Inner Dia.:φ164	24V/12.0W	Yes
KMN-RN20030-B/G/W		Out dia.:φ200,Inner Dia.:φ164	24V/20.2W	Yes
KMN-RN21030-R		Out dia.:φ210,Inner Dia.:φ174	24V/13.0W	Yes
KMN-RN21030-B/G/W		Out dia.:φ210,Inner Dia.:φ174	24V/21.6W	Yes
KMN-RN25030-R		Out dia.:φ250,Inner Dia.:φ201	24V/18.0W	Yes
KMN-RN25030-B/G/W		Out dia.:φ250,Inner Dia.:φ201	24V/27.1W	Yes
KMN-RN30030-R		Out dia.:φ300,Inner Dia.:φ251	24V/20.0W	Yes
KMN-RN30030-B/G/W		Out dia.:φ300,Inner Dia.:φ251	24V/33.1W	Yes
