KMN-RN60

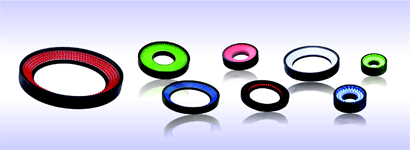

High brightness LEDs are evenly arranged to bring maximum brightness; the angle between illumination direction and light axis is 60°.

Features:

*Multi-angles available to be customized

*Simple installation and compact design

*High brightness LEDs to bring maximum brightness

*Optional diffusers to meet different needs

Applications:

》Mark point positioning of PCB

》OCR on IC chips inspection

》Pill sheet pack incomplete inspection

·KMN-RN60

KMN - RN ## ##- R/G/B/W/IR/UV
company's name - type - diameter - angle - color

Model No	Color	Size	Voltage/Power	Optional
KMN-RN2860-R		Out dia.:φ28,Inner Dia.:φ10	24V/0.2W
KMN-RN2860-B/G/W		Out dia.:φ28,Inner Dia.:φ10	24V/0.5W
KMN-RN5060-R		Out dia.:φ50,Inner Dia.:φ28.5	24V /1.0W	Yes
KMN-RN5060-B/G/W		Out dia.:φ50,Inner Dia.:φ28.5	24V /1.7W	Yes
KMN-RN6060-R		Out dia.:φ60,Inner Dia.:φ33.5	24V/1.7W	Yes
KMN-RN6060-B/G/W		Out dia.:φ60,Inner Dia.:φ33.5	24V/2.4W	Yes
KMN-RN6660-R		Out dia.:φ66,Inner Dia.:φ35	24V/2.2W	Yes
KMN-RN6660-B/G/W		Out dia.:φ66,Inner Dia.:φ35	24V/3.6W	Yes
KMN-RN6760-R		Out dia.:φ67,Inner Dia.:φ36	24V/2.2W
		Out dia.:φ67,Inner Dia.:φ36	24V/3.6W
KMN-RN7060-R		Out dia.:φ70,Inner Dia.:φ30	24V/2.2W	Yes
KMN-RN7060-B/G/W		Out dia.:φ70,Inner Dia.:φ30	24V/3.4W	Yes
KMN-RN7460-R		Out dia.:φ74,Inner Dia.:φ35	24V /2.6W	Yes
KMN-RN7460-B/G/W		Out dia.:φ74,Inner Dia.:φ35	24V /3.8W	Yes
KMN-RN9060-R		Out dia.:φ90,Inner Dia.:φ40	24V/2.9W
KMN-RN9060-B/G/W		Out dia.:φ90,Inner Dia.:φ40	24V/4.3W
KMN-RN10060-R		Out dia.:φ100,Inner Dia.:φ50	24V /4.3W	Yes
KMN-RN10060-B/G/W		Out dia.:φ100,Inner Dia.:φ50	24V /7.2W	Yes
KMN-RN12060-R		Out dia.:φ120,Inner Dia.:φ60	24V /8.6W	Yes
KMN-RN12060-B/G/W		Out dia.:φ120,Inner Dia.:φ60	24V /13.0W	Yes
KMN-RN15060-R		Out dia.:φ150,Inner Dia.:φ94	24V/8.6W	Yes
KMN-RN15060-B/G/W		Out dia.:φ150,Inner Dia.:φ94	24V/14.4W	Yes
KMN-RN18060-R		Out dia.:φ180,Inner Dia.:φ126	24V /8.6W	Yes
KMN-RN18060-B/G/W		Out dia.:φ180,Inner Dia.:φ126	24V /14.4W	Yes
KMN-RN20060-R		Out dia.:φ200,Inner Dia.:φ156	24V/9.6W	Yes
KMN-RN20060-B/G/W		Out dia.:φ200,Inner Dia.:φ156	24V/16.1W	Yes
KMN-RN21060-R		Out dia.:210，Inner Dia：162mm	24V/9.6W	Yes
KMN-RN21060-B/G/W		Out dia.:210，Inner Dia：162mm	24V/16.1W	Yes
