Features --------------------------------------------------- High performace for 5 Mega piexl camera Fixed aperture and manual aperture can be selected small volume Free distortion less than 1% |
|
| Specifications
| Model No | KMN-HC1205A | |
| Focal length | F=12.5mm | |
| FNO | F=1:1.4~16 | |
| Image Size | 1“ | |
| Angle(HxV) | 1" | 54.5°x42° |
| 2/3" | 38.5°x29.1° | |
| 1/2" | 28.8°x21.7° | |
| Object Dimennsion at M.O.D(HxV) | 1" | 126.4x93 |
| 2/3" | 84.9x63 | |
| 1/2" | 62.3x46.4 | |
| Distortion(TV) | <1.8% | |
| Minimum Object Distance | 0.1m | |
| Filter size | M46x0.75 | |
| Mount | C Mount | |

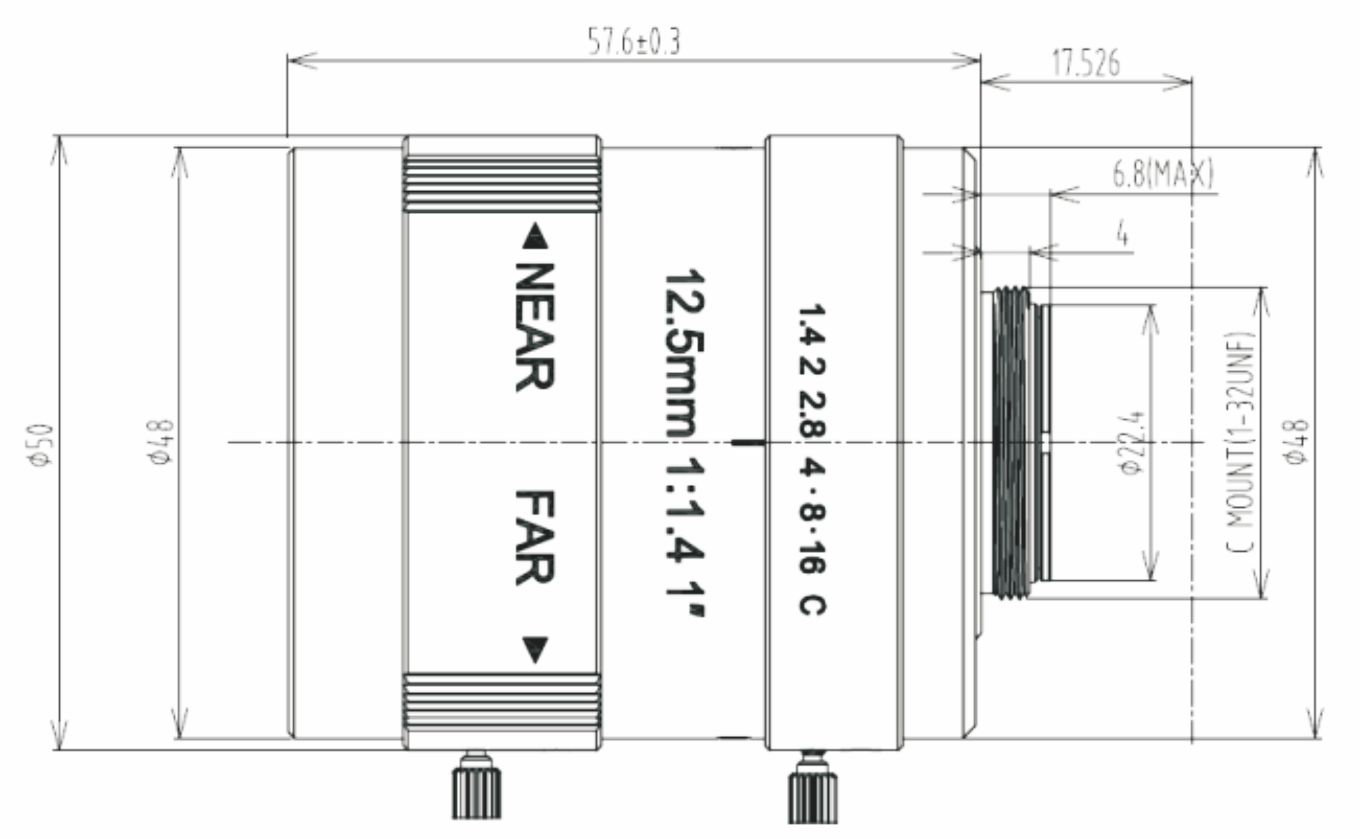

| External View
