Features --------------------------------------------------- High performace for 5 Mega piexl camera Fixed aperture and manual aperture can be selected small volume Free distortion less than 1% |
|
| Specifications
| Model No | KMN-HC7505A | |
| Focal length | F=75mm | |
| FNO | F=1:1.8~16 | |
| Image Size | 1“ | |
| Angle(HxV) | 1" | 9.8°x7.4° |
| 2/3" | 6.74°x5° | |
| 1/2" | ||
| Object Dimennsion at M.O.D(HxV) | 1" | 133.7x100.2 |
| 2/3" | 91.9x68.9 | |
| 1/2" | 66.8x50.1 | |
| Distortion(TV) | <0.2% | |
| Minimum Object Distance | 0.8m | |
| Filter size | M58x0.75 | |
| Mount | C Mount | |

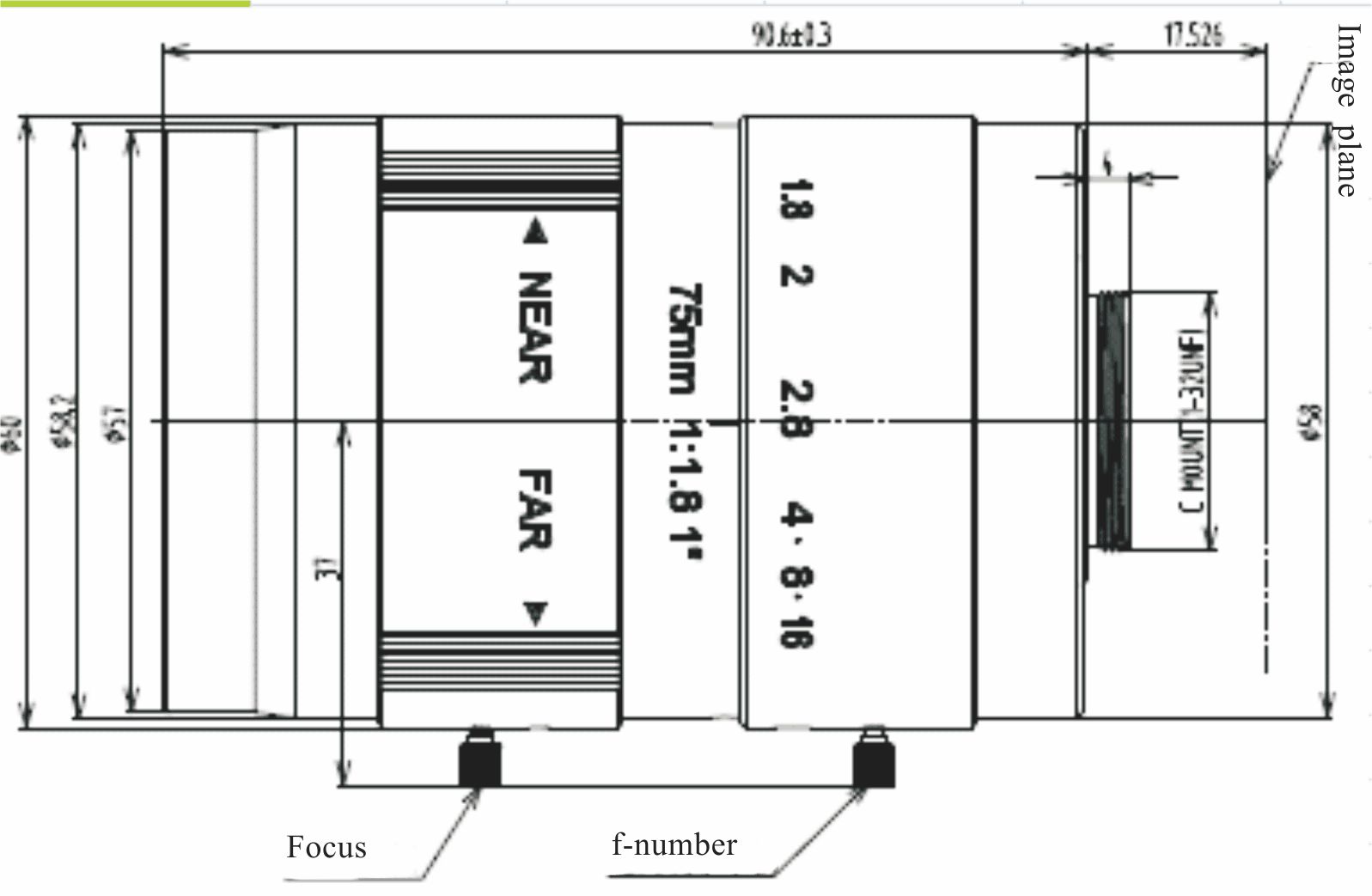

| External View
