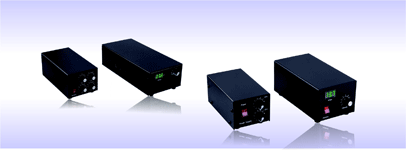

KMN-APC
The analogue controller can adjust the intensity by changing the voltage and it has the advantages of simple structure and convenient operation. As the most commonly used power supply with trigger function, it is suitable for most occasions.
The Features of the Analogue Controller
1.No intensity level adjust;
2.Simple structure and good stability;
3.Short-circuit protection; 4.With external trigger and trigger reversal function;
5.With voltage display function.
Parameters of the Analogue Controller
Model | KMN-APC2424 -1/2/4 | KMN-APC2460 -1/2 | KMN-APC24120 -1 | KMN-APC24400 -1 | KMN-APC48600 -1 | KMN-APC2424 -1M/2M |
No. of channels | Channel 1.2.4 | Channel 1.2 | Channel 1 | Channel 1 | Channel 1 | Channel 1.2 |
Single output current | Max 1A | Max 2.5A | Max 5A | Max 17.5A | Max 12.5A | Max 1A |
Input voltage | 100-240V | 170-260V | 100-240V | |||
External trigger input voltage | 0-1.5V | 5-24V | Without trigger function | |||
Trigger delay time | ＜80us | Without trigger function | ||||
External trigger frequency | ＜1/T | Without trigger function | ||||
Intensity control mode | Through control voltage | |||||
Intensity level | None | |||||
Driving mode | Constant-voltage system | |||||
The Instructions of the Analogue Controller

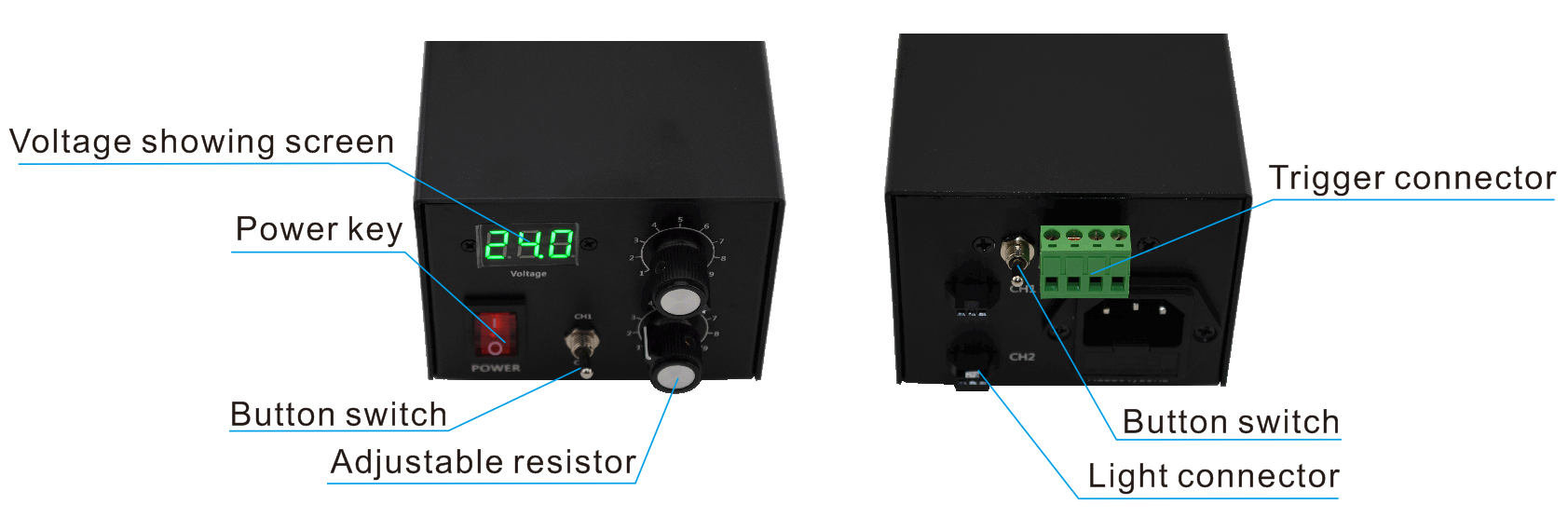

Operation Panel Instructions
1.The Function of the Adjustable Resistor
The output voltage becomes strong when adjusting clockwise; it becomes weak when adjusting counter-clockwise.
2.The Content of the Digital Showing Screen
What the digital showing screen displayed is the value of the output voltage, accurate to 0.1V (that is, with a decimal).
3.Controller Wiring Method
（1）Connecting the light with the light connector (refer to Operation Panel Instructions);
（2）If the external trigger is needed, please connect the external signal source with the trigger connector. “+”matches positive pole, “-”matches negative pole (refer to Operation Panel Instructions);
（3）Power source connect-in （AC 220V）, pushing the red switch button “—”, “O” bulging with indicator light on, indicating power on.
External Trigger Instructions
The controller has positive and negative trigger, which can be set by the button switch (refer to Operation Panel Instructions). The client can choose the trigger mode flexibly according to the actual situation.
Positive trigger: (the light is on without trigger access)
| Trigger signal input situation | Suspended or high level 5V-24V | Short circuit or low level 0V-1.5V |
| External light response situation | Light is on | Light is off |
Negative trigger: (the light is off without trigger access)
| Trigger signal input situation | Suspended or high level 5V-24V | Short circuit or low level 0V-1.5V |
| External light response situation | Light is off | Light is on |
The trigger mode can be set through button switch ((refer to Operation Panel Instructions for setting methods):
The button switch upward stands for positive trigger. Output will be off when trigger connector short circuit or low level （0-1.5V） connect in. Output will be on when trigger signal canceled or the signal level turns to be （5-24V）.
The button switch downward stands for negative trigger. Output will be on when trigger connector short circuit or low level （0-1.5V）connect in. Output will be off when trigger signal canceled or the signal level turns to be （5-24V）.
Models of the Analogue Controller
Type | Model | Voltage | Power | No. of channels | Remarks |
Low Power Analogue Controller | KMN-APC2424-1 | 24V | 24W | 1 | With display and trigger function |
| KMN-APC2424-2 | 24V | 24W | 2 | ||
KMN-APC2424-4 | 24V | 24W | 4 | With trigger function but without display function | |
Medium Power Analogue Controller | KMN-APC2460-1 | 24V | 60W | 1 | With display function but without trigger function |
KMN-APC2460-2 | 24V | 60W | 2 | ||
KMN-APC2460-1S | 24V | 60W | 1 | With display and trigger function | |
KMN-APC2460-2S | 24V | 60W | 2 | ||
KMN-APC24120-1S | 24V | 120W | 1 | ||
KMN-APC24120-1 | 24V | 120W | 1 | With display function but without trigger function | |
High Power Analogue Controller | KMN-APC24400-1 | 24V | 400W | 1 | |
KMN-APC48600-1 | 48V | 600W | 1 | Without display and trigger function | |
Mini Analogue Controller | KMN-APC2424-1M | 24V | 24W | 1 | |
KMN-APC2424-2M | 24V | 24W | 2 |

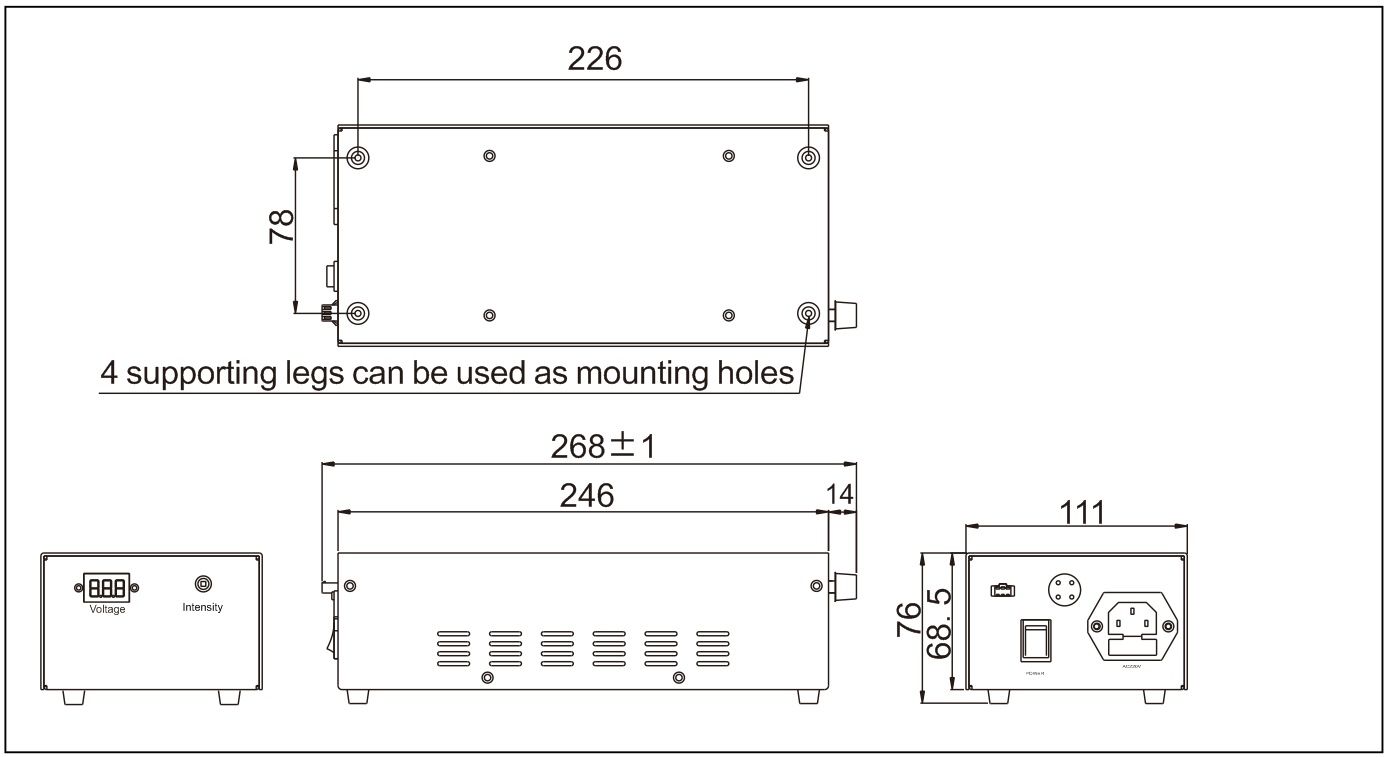

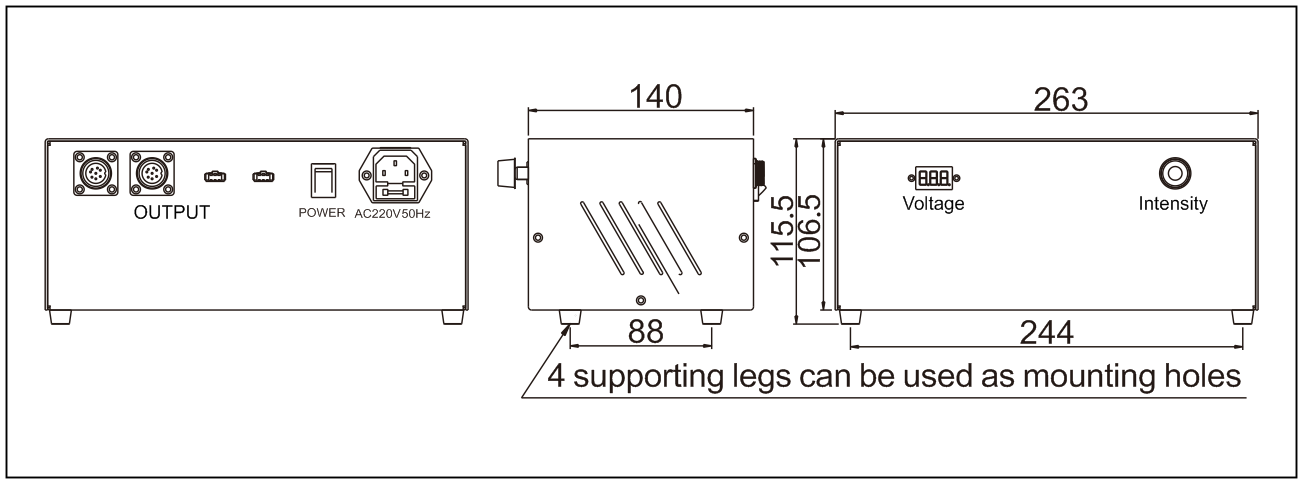

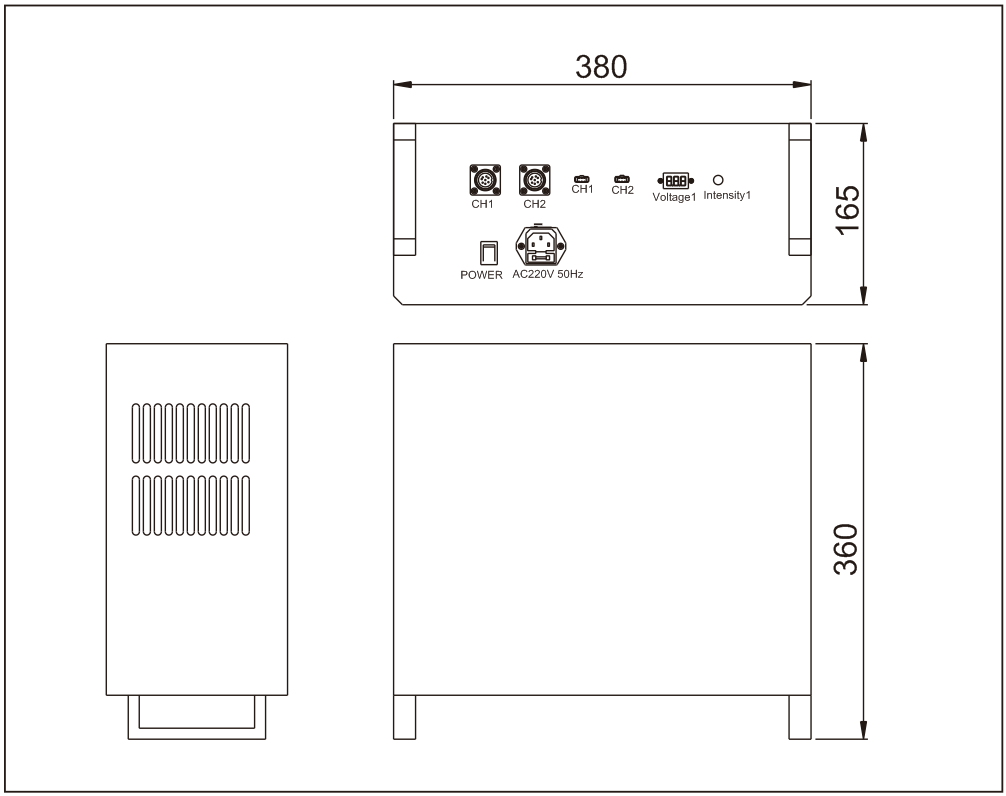

Dimensional Drawings

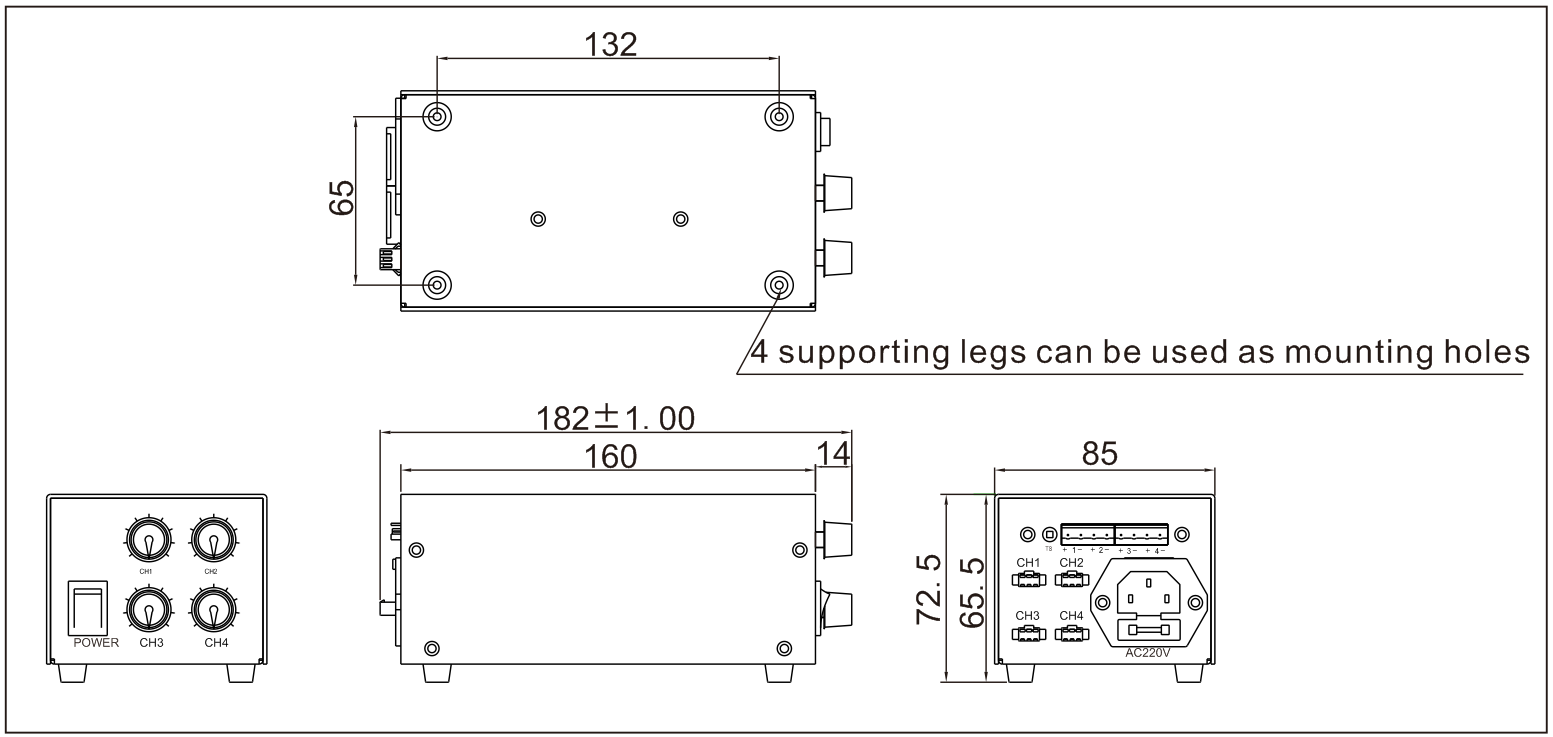

1.KMN-APC2424/2460-1/2/4/1S/2S
