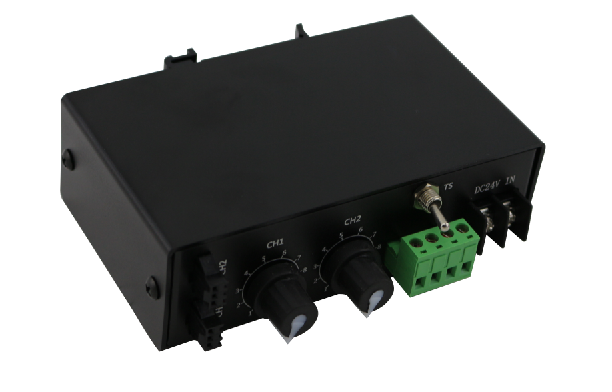

KMN-APC
The mini controller can adjust the intensity by changing the voltage and it has the advantages of simple structure and convenient operation. As the most commonly used power supply with trigger function, it is suitable for most occasions.
The Features of the Mini Controller:
Adjustable voltage: 13.3-24V;
Controlled by hand: adjust the intensity manually;
External trigger: external signals, such as the camera trigger signal is inputted into the controller to get strobe lighting, thus greatly extend the life of the light;
Easy to install: the use of buckle track installation is simple and easy;
Short-circuit protection: the self-recovery function of short circuit in short time.
Parameters of the Mini Controller:
| Model | KMN-APC24-2F | Remarks |
| Output voltage | 13.3-24Vadjustable voltage | |
| Intensity level | None | Adjustable resistor |
| External trigger input | Positive/negative optionally | Choosing high or low level trigger through button |
| Trigger delay time | ＜80us | |
| External trigger frequency | 1/T | Decided by strobe time, e.g.: T=1ms, then the maximum of the external trigger is up to 1K |
| Working temperatur44e | 0～60℃ | |
| Single output | 30W | |
| Maximum input voltage | 26V | |
| Standby power | ＜3W |
The Instructions of the Mini Controller

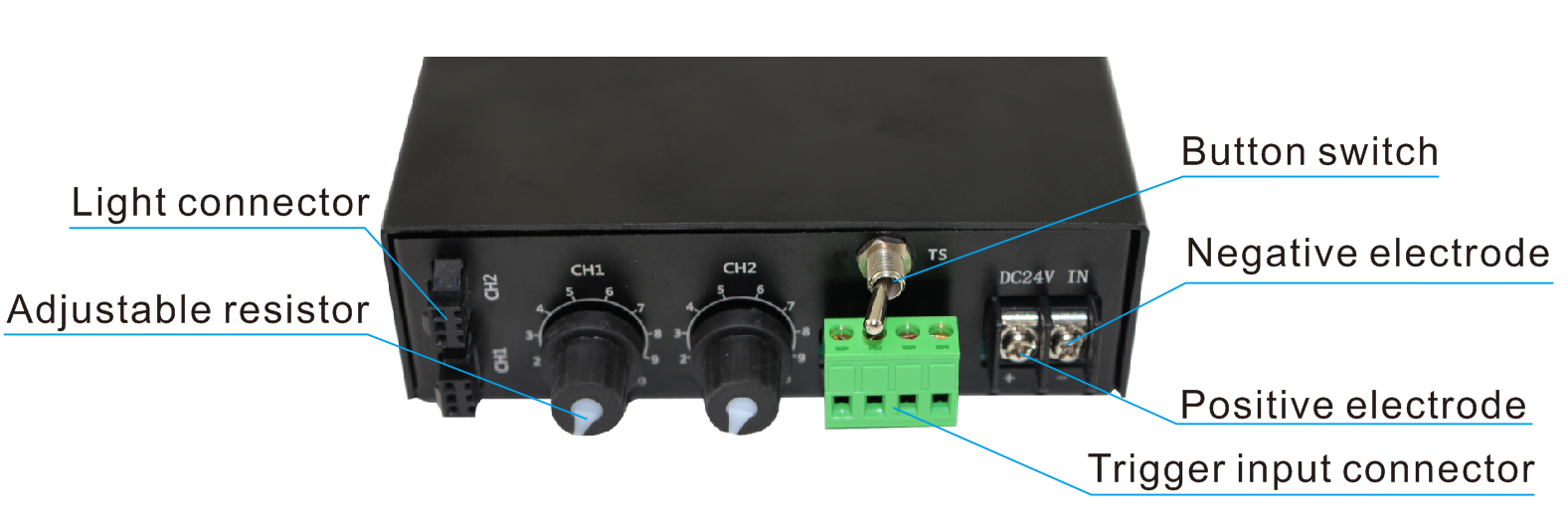

Operation Panel Instructions
Trigger terminal
As it shows above, the green terminal can connect two trigger signals. A pair of terminals on the left corresponds to CH1. A pair of terminal on the right corresponds to CH2. DC voltage can be inputted 0-1.5V. The light is triggered from 5V to 24V.
Controller wiring
(1)Connect the light with the controller (refer to the Operation Panel Instructions)
(2)Power source connect-in （DC 24V）. The positive electrode is connected to the left and the negative electrode is on the right.
External trigger instructions
The control unit has positive trigger and negative trigger, which can be set by the button switch（Refer to operation panel instructions）.Customer can select trigger mode accordingly.
Positive trigger:（It will keep bright without trigger access.）
| Trigger signal output status | Vacancy or high level 5V-24V | Short circuit or low level 0V-1.5V |
| Connecting light source response status | Light up | Light out |
Negative trigger:（It will keep bright without trigger access.）
| Trigger signal output status | Vacancy or high level 5V-24V | Short circuit or low level 0V-1.5V |
| Connecting light source response status | Light out | Light up |
Trigger mode of the controller can be set through button switch (refer to Operation Panel Instructions for methods)
(1)Button switch to the left stands for positive trigger. Output will be off when trigger connector short circuit or low level （0-1.5V）connect in. Output will be on when trigger signal canceled or the signal level turns to be （5-24V）.
(2)Button switch to the right stands for negative trigger. Output will be on when trigger connector short circuit or low level （0-1.5V）connect in. Output will be off when trigger signal canceled or the signal level turns to be （5-24V）.
Models of the Mini Controller
| Type | Model | Voltage | Power | Number of channels | Remarks |
| Mini Controller APC Series | KMN-APC24-2F | 24V | 60W | 2 | Without display, with trigger function |

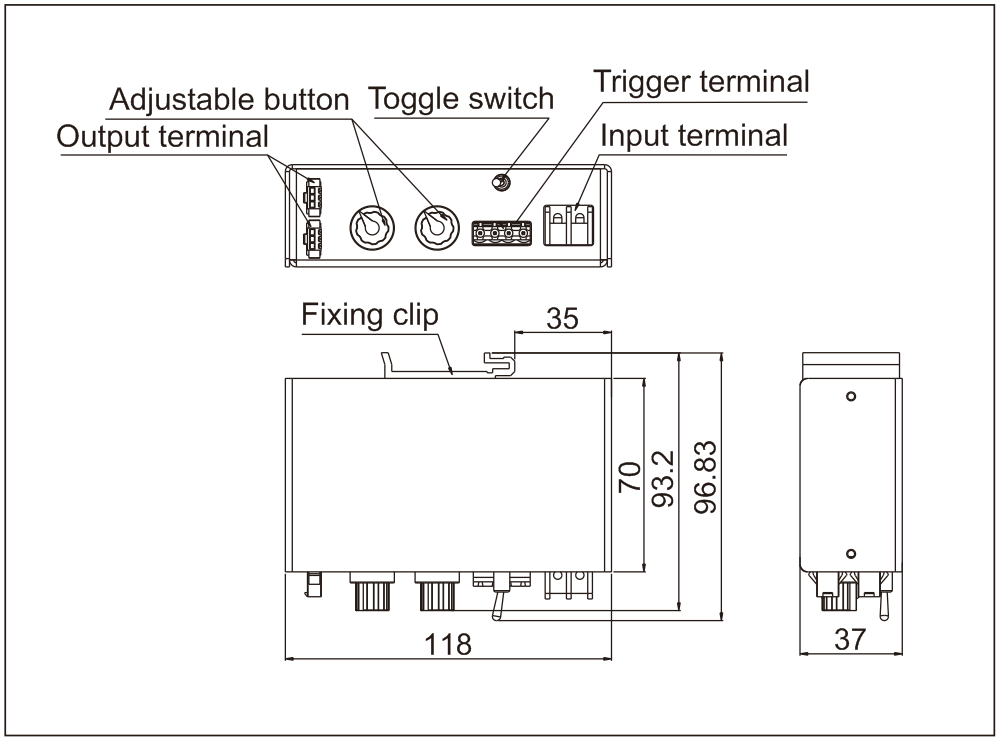

Dimensions(mm)
1.KMN-APC24-2F
