Features ------------------------------------------------ nomo-focal for best image quality High performace for 5 Mega piexl camera Large aperture ratio for low illumination Free distortion less than 1% Focus range from 0.1M to Infinity Higher relative illuminate rate at corner |
|
| Specifications
| Model No | KMN-FA1202A | |
| Focal length | F=12mm | |
| FNO | F=1:1.4～16 | |
| Image Size | 2/3“ | |
| Angle(HxV) | 2/3" | 39°x30.3° |
| 1/2" | 29.48°x22.8° | |
| Object Dimennsion at M.O.D(HxV) | 2/3" | 114x86 |
| 1/2" | 84.7x65.5 | |
| Distortion(TV) | <-0.8% | |
| Minimum Object Distance | 0.15m | |
| Filter size | M30.5x0.5 | |
| Mount | C Mount | |

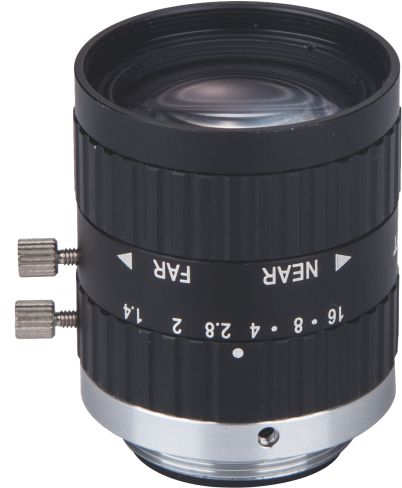

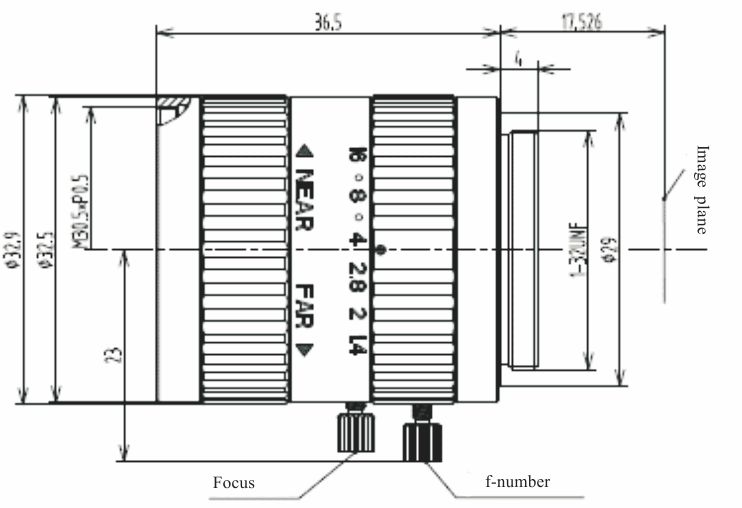

| External View
